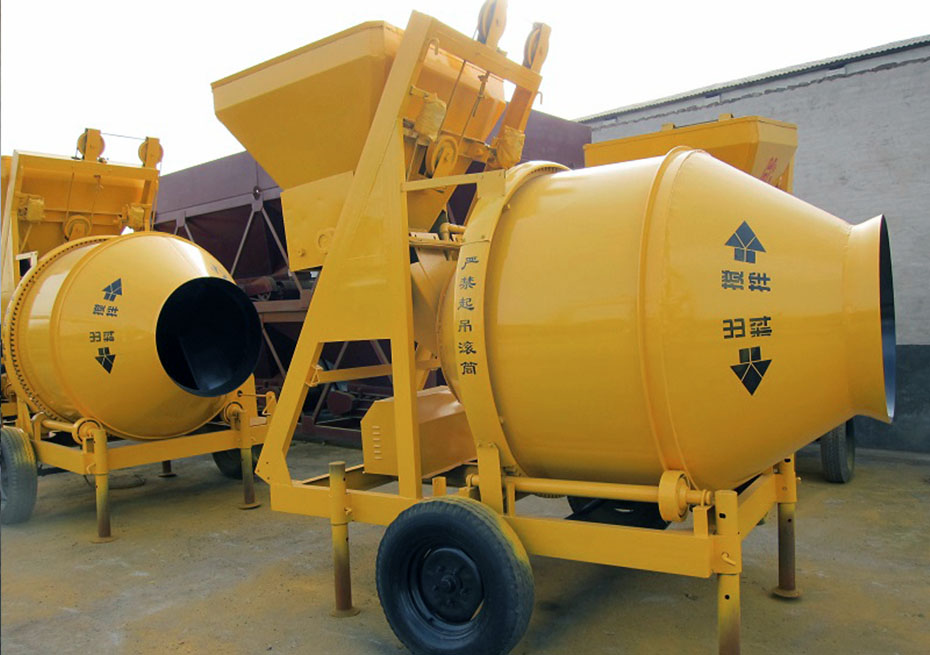

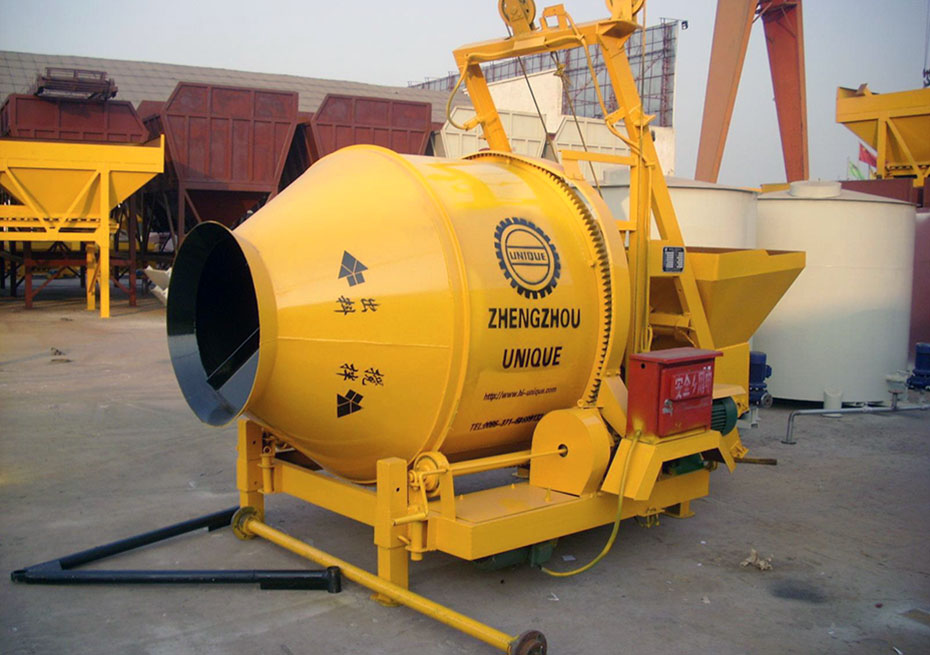

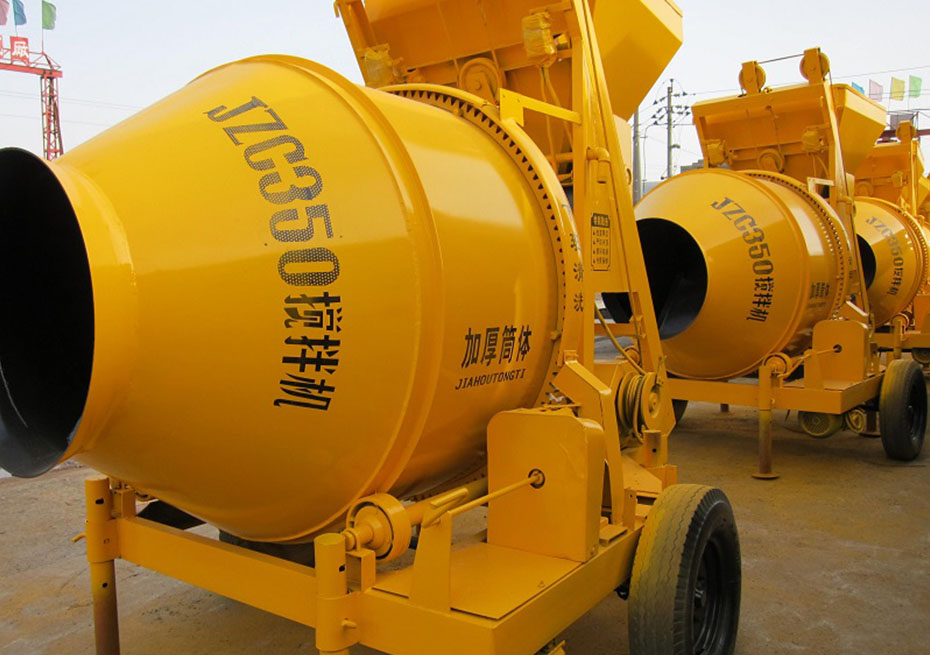

1. Drum concrete mixer also called self falling mixer, it is a gravity type of double-conic reversing drum concrete mixer, the drum transit by friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging.
2. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.

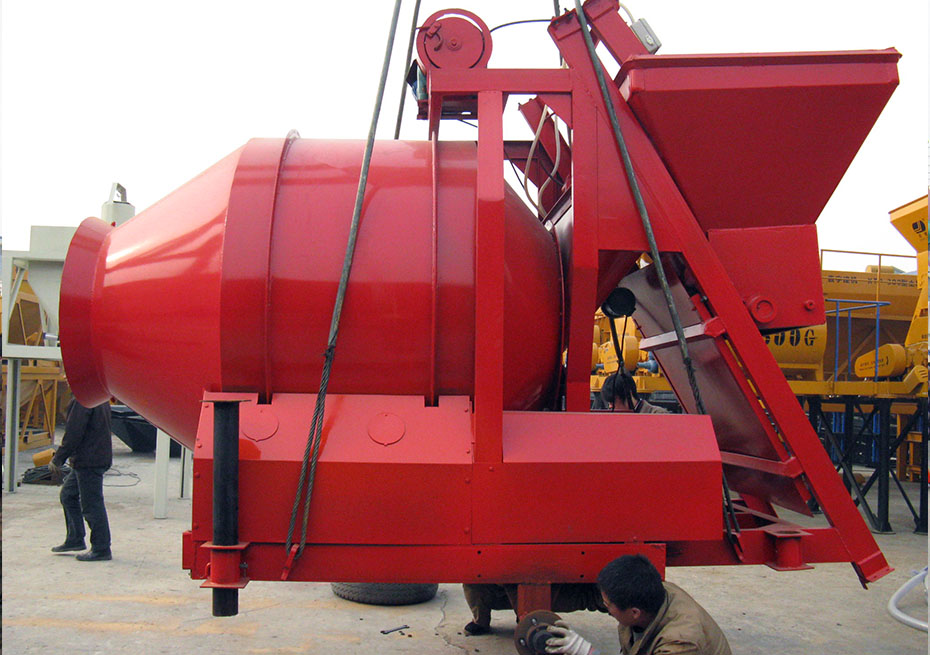

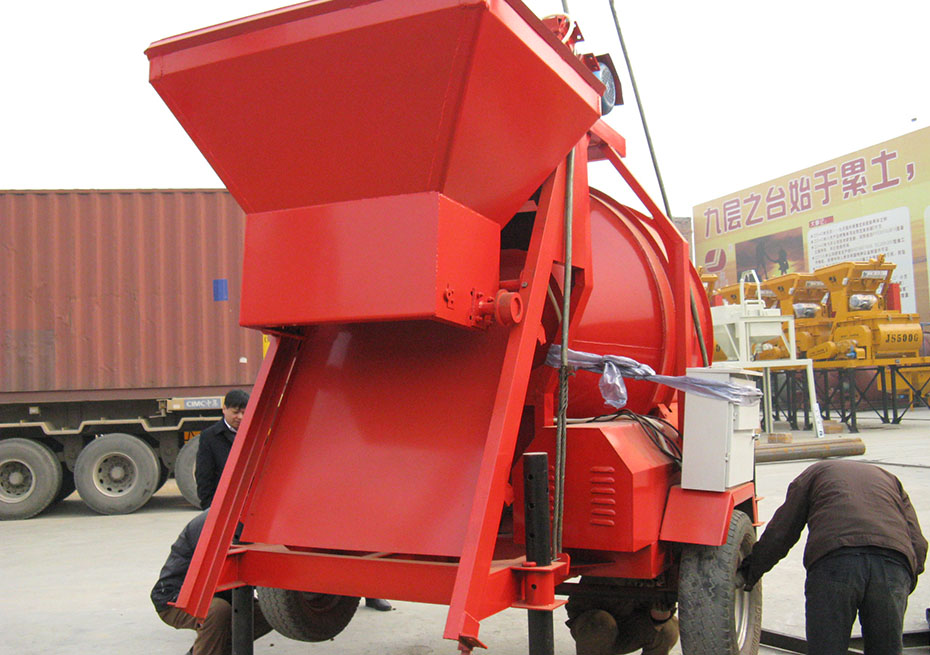

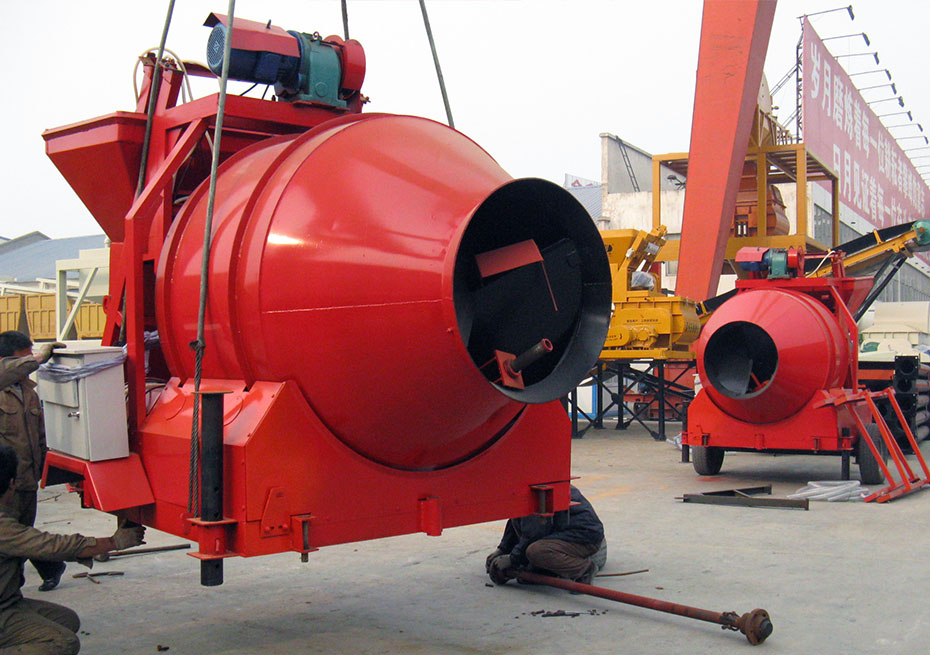

3. Depending on working principle difference, it has 2 types: JZC series and JZM series
Model | JZM350 | JZM500 |
Discharge volume | 350L | 500L |
Charging volume | 560L | 800L |
Capacity | 10-14m3/h | 25-30m3/h |
Aggregate sizes | ≤60mm | ≤70mm |
Rotating speed | 14r/min | 13r/min |
Max. drag speed | 20km/h | 20km/h |
Mixing motor | 5.5kw | 7.5kw |
Lifting motor | 4.5kw | 5.5kw |
Pump motor | 0.55kw | 0.75kw |
