Concrete Mixer Pump


Concrete Mixer Pump

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

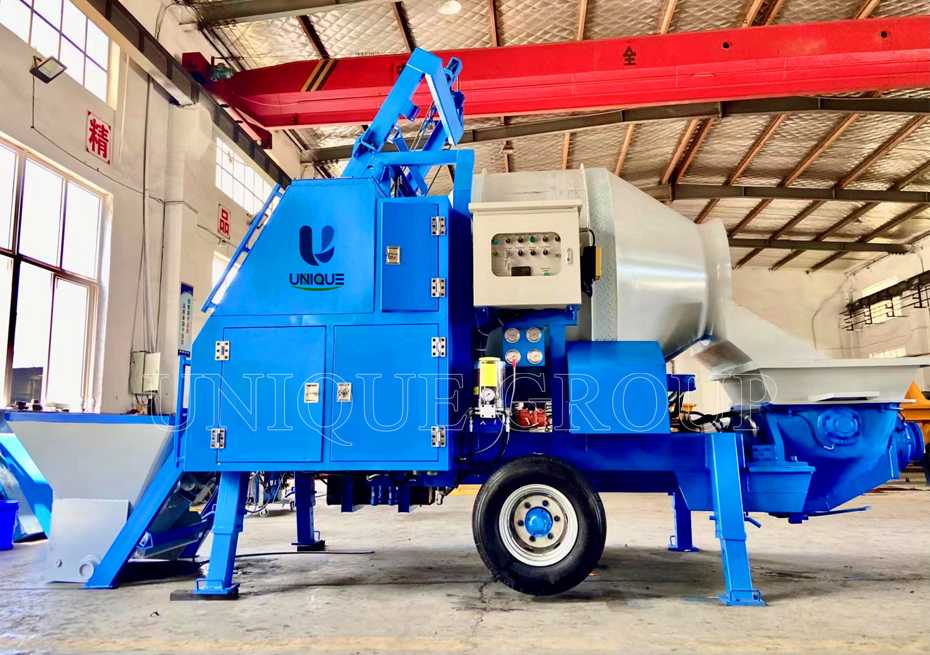

UNIQUEDiesel Concrete Mixer With Pump

Model: JBS30-JBS40

Power type: Diesel

Theoretical output: 30m3/h / 40m3/h

Max. concrete pumping pressure : 10 MPa

Theoretical delivery distance : 120/350m 160/500m

Total weight : 5500kg 6000kg

Max theoretical concrete conveying capacity30m3/h
Distribution valve modelS tube valves
Hopper capacity * filling height500L* 1200mm
Pump motor power30kw
Winding motor power4kw
Hydraulic circuit formOpen circuit
Rated speed1480Rmp
Oil tank volume170L
Concrete pumping pressure9Mpa
Concrete cylinder size * length¢180mm*800mm
Discharge mouth diameter¢180mm
Mixing motor power3*2kw
Water pump motor power550w
Max aggregate diameterPebble: 40mm
Gravel: 30mm
