Concrete Trailer Pump

该产品后台详情无内容

Concrete Trailer Pump

This concrete pump is with efficient hydraulic system, new high-speed commutation with pumping exchange efficiency being increased by 12%.
The main cylinder waterproof seal patented technology, effectively preventing water from entering the hydraulic system to avoid hydraulic oil emulsion;

Advanced S valve system of concrete trailer pump has good sealing performance, economic and durable quick-wear parts, easy replacement;

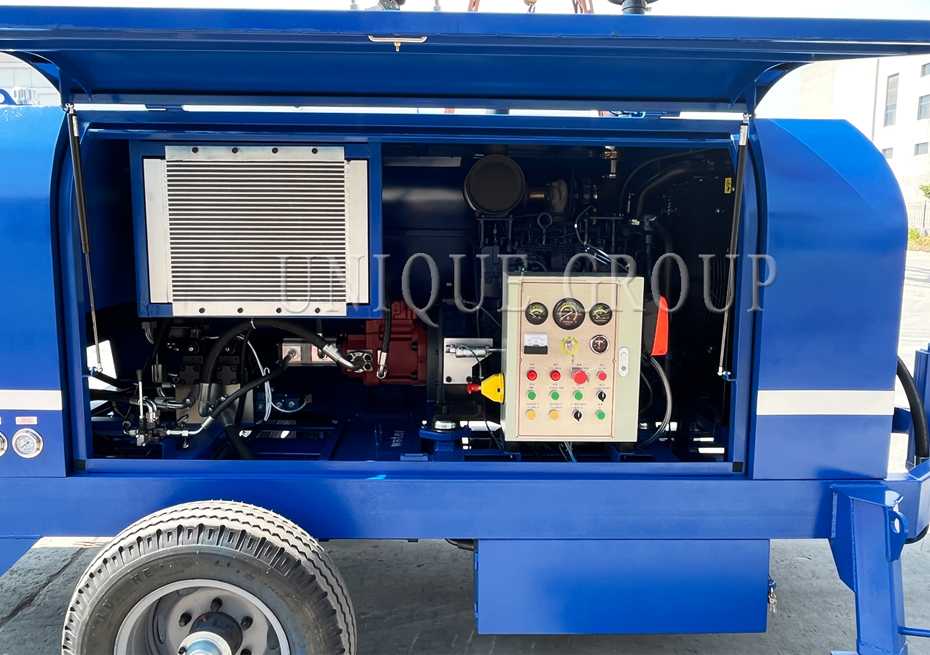

Hydraulic and electrical components adopt international famous brands with high reliability.

UNIQUEHBT Motor Concrete Trailer Pump

Model:HBT20-HBT80

Hopper capacity : 300L-600L

Feeding height : 1400mm

Theoretical max. delivery pressure : 10Mpa 12Mpa 12.5Mpa 12.5Mpa

Delivery distance Vertical : 120m 150m 180m 180m

Delivery distance Horizontal : 350m 350m 700m 700m

UNIQUE

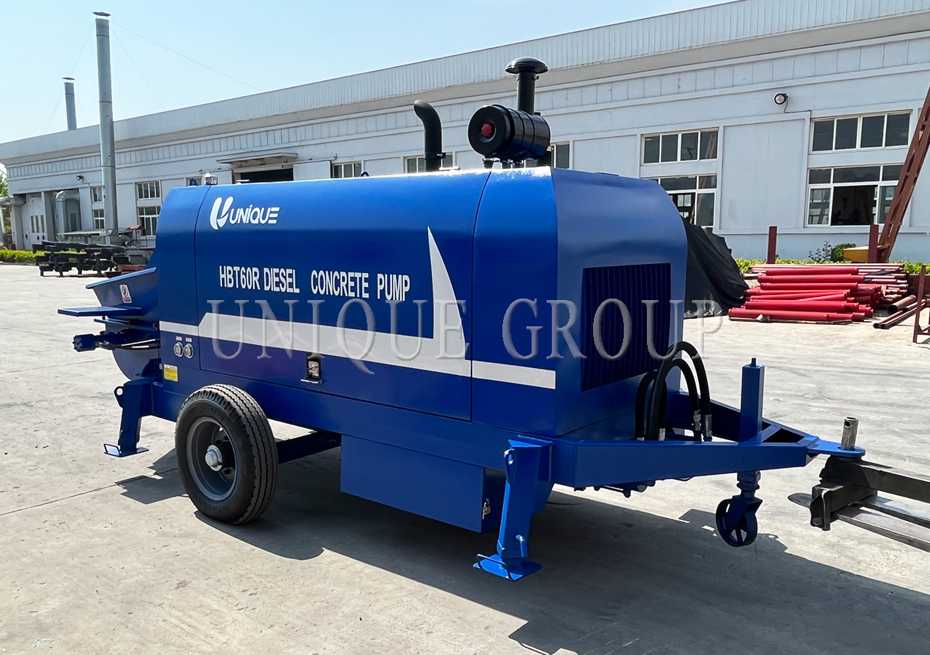

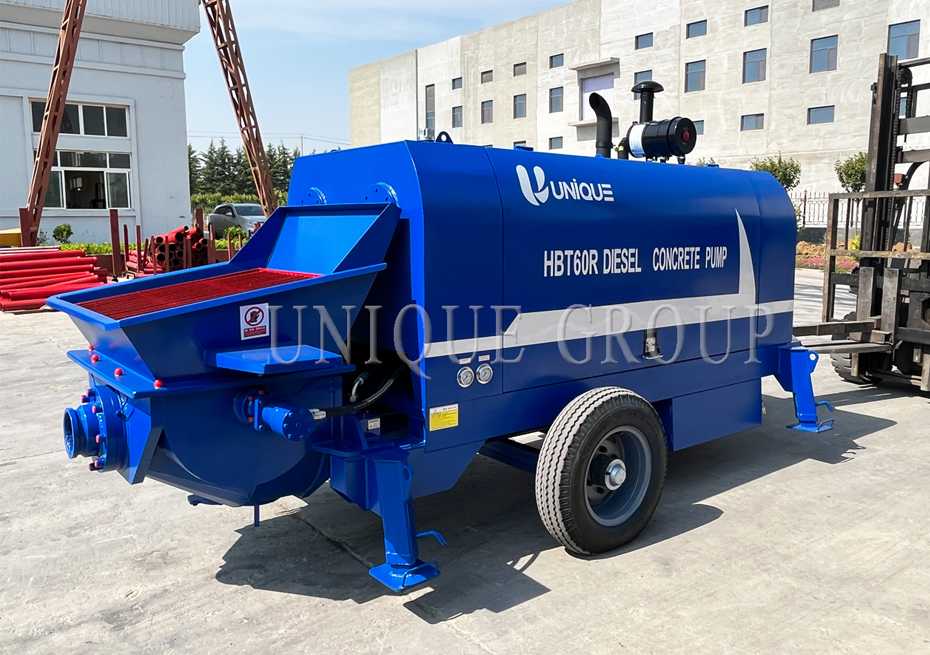

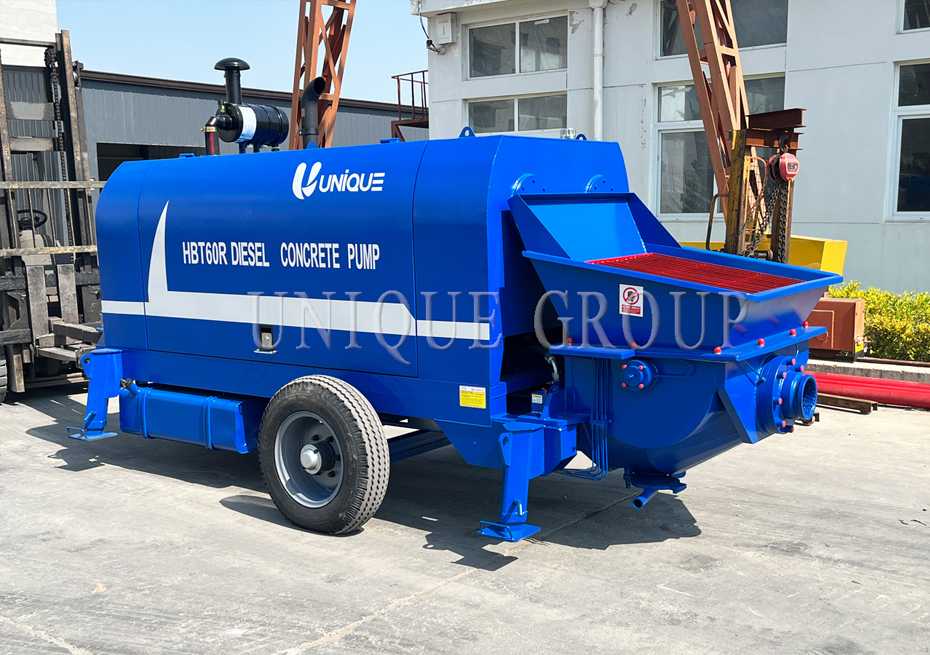

DHBT Diesel Concrete Trailer Pump

Model:HBT20-HBT80

Hopper capacity : 300L- 600L

Feeding height : 1400mm

Theoretical max. delivery pressure : 10Mpa 12Mpa 12.5Mpa 12.5Mpa

Delivery distance Vertical : 120m 150m 180m 180m

Delivery distance Horizontal : 350m 350m 700m 700m

Parameters

ItemsUnitsDHBT60-13-118DHBT60-16-145DHBT80-13-145DHBT80-16-174
Max. Theoretic delivery volumem³/h60608080
Max. Theoretic delivery pressureMpa12.515.712.515.7
Max. Theoretic delivery heightm180250180250
Max. Theoretic delivery distancem70010007001000
Type of distribution valve
S valveS valveS valveS valve
Hopper capacityL600600600600
Inner diameter of delivery pipemmΦ125Φ125Φ125Ф125
Diesel engine powerKw118145145174
Max. Oil pressure of main systemMPa32323232
Max. Oil pressure of mixing systemMPa14141414
Dimension (length ×width ×height)mm6600×1930×21906600×1930×21906600×1930×21906600×1930×2190
Overall weightKg5500600060006500

Features of Concrete Trailer Pump
