HZS series bucket concrete mixing plant

Bucket concrete batching plant adopts skip hopper(bucket) to transport aggregate from batching machine to twin shaft mixer.

The bucket concrete batching plant has the advantages of small using space, flexible installation and convenient movement, so it is very popular by users.

HZS25 Concrete Batching Plant in Philippines

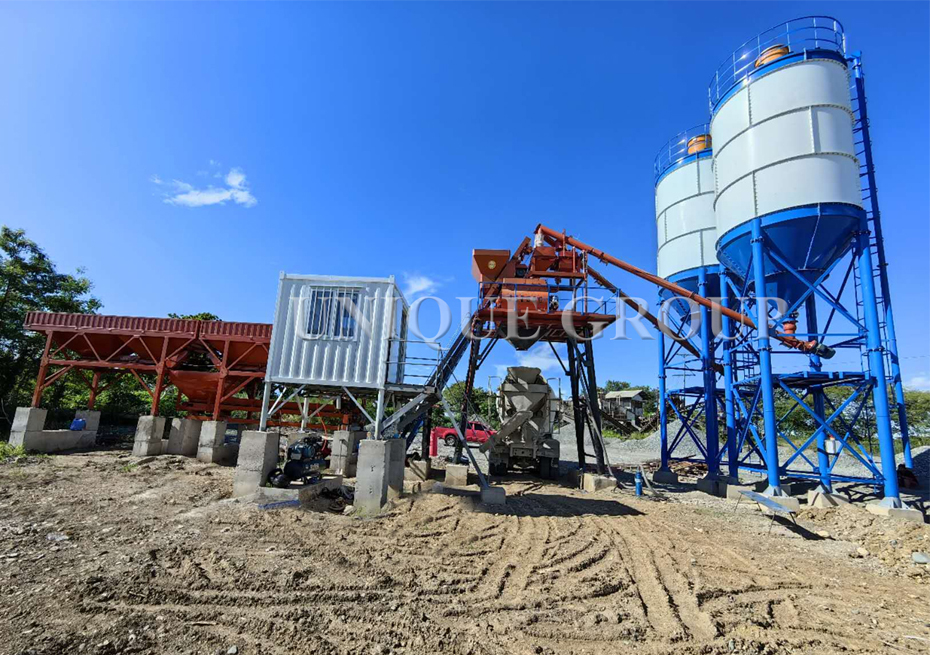

HZS35 Concrete Batching Plant in Oman

HZS50 Concrete Batching Plant in Uzbekistan

HZS75 Concrete Batching Plant in Philippines

UNIQUEHZS25 Concrete Batching Plant

Capacity： 25m3/h

Aggregate feeder： Bucket (Skip hopper)

Discharging Height：3800mm

Mixing system： JS500

After-sale service：12 months after erection, Erection & commissioning, operator training

Aggregate batching machine： PLD800

Get a free quote

UNIQUEHZS35 Skip hopper Concrete Batching Plant

Capacity： 35m3/h

Aggregate feeder： Bucket (Skip hopper)

Discharging Height：3800mm

Mixing system： JS750

After-sale service：12 months after erection, Erection & commissioning, operator training

Aggregate batching machine： PLD1200

Get a free quote

UNIQUE

HZS50 Concrete Batching Plant

Capacity： 50m3/h

Aggregate feeder： Bucket (Skip hopper)

Discharging Height：3800mm

Mixing system： JS1000

After-sale service：12 months after erection, Erection & commissioning, operator training

Aggregate batching machine： PLD1600

Get a free quote

UNIQUE

HZS75 Skip hopper Concrete Batching Plant

Capacity：75m3/h

Aggregate feeder： Bucket (Skip hopper)

Discharging Height：3800mm

Mixing system： JS1500

After-sale service：12 months after erection, Erection & commissioning, operator training

Aggregate batching machine： PLD2400

Get a free quote

Technical Parameters of Skip Hopper Concrete Batching Plant

Model	HZS25	HZS35	HZS50	HZS75
Capacity (m3/h)	25	35	50	75
Mixing system (twin shaft concrete mixer)	JS500	JS750	JS1000	JS1500
Aggregate Feeder	Bucket (Skip Hopper)
Discharging volume	500L	750L	1000L	1500L
Aggregate scale hopper	800L	1200L	1600L	2400L
Weighing system	Water, Cement, Additive
Air system	Air compressor, etc
Control system	Computer auto-control module (PLC can be optional item)
After-sales service	Erection & commissioning, operator training

Features of Concrete Plant

The using space can be saved by nearly one-half compared with the belt conveyor concrete batching plant.

The installation and commissioning time of the whole set of equipment will save about 40% compared with the conventional plant.

The mixing, metering platform and lifting system platform have the same space as the conventional mixing station, which fully guarantees the need for calibration, inspection and maintenance.

Can still meet the workspace requirements when it needs to be fully enclosed

HZS series adopts imported motor and reducer as the lifting body

The unique design of the hopper and bucket track can be more efficiently hold and dump the aggregate

By optimizing the combination, shortening the cycle time of feeding-mixing-discharging and making an effective increase in production capacity.

UNIQUE Group is a professional concrete mixing equipment manufacturers in China.

HZS Series Bucket Ready Mix Concrete Batching Plant

HZS series bucket concrete mixing plant
