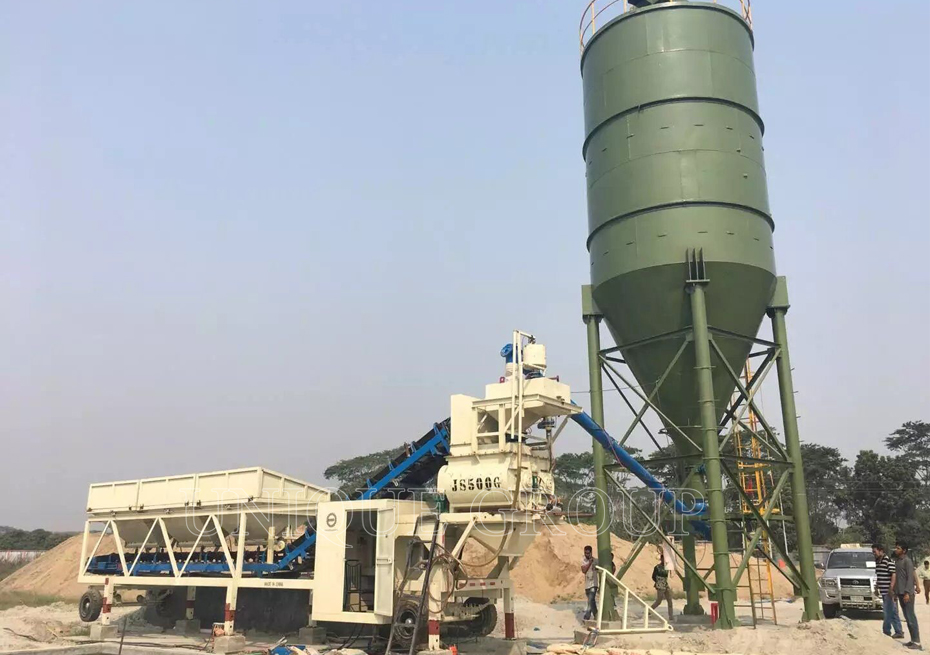

YHZS60 Mobile Concrete Batching Plant in Fiji
UNIQUE Group is a professional concrete mixing equipment manufacturers in China.
his series of batching plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.
Unique concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.
UNIQUE Mobile Concrete Batching Plant
Capacity： 25-100m3/h
Discharging Height：3800mm
Warranty：12 months after erection
Mixing system： Twin-shaft concrete mixer
After-sale service：Erection & commissioning, operator training
Aggregate batching machine： PLD2400/ PLD1600 PLD2400 PLD3200 PLD4800 PLD4800
Headlines
What are the components of concrete batching plant?
A mobile concrete batching plant has the following main features:
Material storage: capable of storing a variety of concrete raw materials, such as sand, small stones, large stones, etc.
Conveying system: efficiently conveying raw materials to the mixer, reducing manual intervention.
Material storage,Weighing System,Conveying system,Mixing system,Unloading system,Full-automatic control system
Full-automatic control system: set the proportioning parameters through the control panel of full-automatic control cabinet, the full-automatic control system can realize the hand-automatic operation, equipped with Lenovo computer.
Mixing system: adopting advanced forced double horizontal shaft mixing technology to ensure the uniformity and quality of concrete.
Weighing System: Accurately weighing all kinds of raw materials to ensure the accuracy of concrete proportioning.
| Model | YHZS25-30 | YHZS35-40 | YHZS50-60 | YHZS75-85 | YHZS90-100 |
| Capacity(m3/h) | 25-30 | 35-40 | 50-60 | 75-85 | 90-100 |
| Aggregate feeder | Belt Conveyor | ||||
| Mixing system (twin shaft concrete mixer) | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Discharging volume | 500L | 750L | 1000L | 1500L | 2000L |
| Aggregate Bins | 4*4m3 | 4*5m3 | 4*6m3 | 4*7m3 | 4*8m3 |
| Weighing system | Water, Cement, Additive | ||||
| Air system | Air compressor, etc | ||||
| Control system | SIEMNS PLC+PC, Computer auto-control module (PLC can be optional item) | ||||
| After-sales service | Erection & commissioning, operator training | ||||
