concrete batching plant price series for bridges UNIQUE

Application Scope
UNIQUE Concrete Batching Plant's batching plant for sale can be used in many industries.UNIQUE Concrete Batching Plant always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Company Advantages
1. UNIQUE batching plant philippines has a wide selection of high-quality materials.
2. The product has usability and long service life.
3. The product has stable performance and long service life which our customers are greatly satisfied with.
4. UNIQUE GROUP possess a highly-efficient management team, strong R&D ability, professional customer service and large e-business platform.

Company Features
1. Through our high quality batching plant philippines and ongoing assistance, UNIQUE GROUP has stood out among providers in the industry.
2. UNIQUE GROUP owns professional machines and experiences in this field.
3. The combination of concrete factory and hzs50 concrete batching plant can create perfect quality. Inquire! UNIQUE GROUP will continue to grow under the concept of batching plant in batangas , while bringing benefits to all stakeholders. Inquire! That profession creates excellence is the belief UNIQUE holds. Inquire!

Concrete Mixing Plant

Manufacture Price Fixed Skip Hopper Wet Mix Concrete Batching Station Plant

Concrete batch plants can be portable, stationary, or semi-portable. Typical batch plants are used for ready mix, concrete recycling, civil infrastructure, maritime work, and precast applications etc. In order to meet the construction requirements in new-normal condition, NFLG developed different concrete mixing plants, including 10 categories, 32 models, 28 options.

ModelHZS120HZS180HZS240HZS270HZS300HZS360HZS420
mixer(twins piral/twin blade)modelJS2000JS3000JS4000JS4500JS5000JS6000JS7000
Discharge volume(L)2000300040004500500060007000
aggregate particle size(mm)≤80
Batching station (semi-siloed)bin volume(m³)4 storehouses
lnclined belt conveyor band width(flat belt)B1000B1000B1000B1200B1200B1200B1200
csale range and accuracystone scale(kg)(720-2400)±2%(1080-3600)±2%(1440-4800)±2%(1620-5400)±2%(1800-6000)±2%(2160-7200)±2%(2520-8400)±2%
sand scale(kg)(480-1600)±2%(720-2400)±2%(960-3200)±2%(1080-3600)±2%(1200-4000)±2%(1440-4800)±2%(1680-5600)±2%
cement scale(kg)(360-1200)±1%(540-1800)±1%(720-2400)±1%(810-2700)±1%(900-3000)±1%(1080-3600)±1%(1260-4200)±1%
fly ash scale(kg)(120-400)±1%(180-600)±1%(240-800)±1%(270-900)±1%(300-1000)±1%(360-1200)±1%(420-1400)±1%
water scale(kg)(150-500)±1%(240-800)±1%(360-1200)±1%(360-1200)±1%(360-1200)±1%(420-1400)±1%(420-1400)±1%
liquid admixture scale(kg)(15-50)±1%(24-80)±1%(36-120)±1%(36-120)±1%(36-120)±1%(42-140)±1%(42-140)±1%
unloading height(m)4.14.14.14.14.24.24.2

Batching system



Quality stability and efficiency upgrade

The optimized vibration lining plate structure, together with the design of large-inclined-angle and eccentric-pin arch-breaking, plus the adjustable pressure reducing plate, can guarantee the unloading efficiency, stable performance, safe production, and comfortable use.

Conveying system



Scientific design, easy to maintain and durable

Replaceable frictional rubber coating roller and it can be completed in half an hour. The water cleaning plus the five-pass in addition to removing foreign body mode makes the belt not vulnerable and the equipment more durable.

Powder weighing system



Overall optimization, accurate and reliable

Optimize the structure of the screw device, improve the weighing frame structure, more scientific breathable design, multiple accurate measurements for powder escort, so that the measurement data more accurate, more stable weighing performance.

Liquid weighing system



Multi-layer precision control and excellent performance

Upgrade the water storage tank, and realized the overbalance of the coarse and fine metering, to ensure the accurate and controllable liquid weighing; more with independent admixture said, further accurate, refined measurement data, highly ensure the quality of concrete.

Dust removing system



Streamlining, high efficiency, economy and environmental protection

Equipped with pulse bag filter with dust removal efficiency up to 99.9%, it's easy maintenance; Adopt the big fan to take the initiative to draw the air, balance the air pressure between each system, ensure the weighing accuracy and blanking speed stable.

Mixing system



High efficiency, energy saving, and stability

Adopt double spiral belt mixer, stable and reliable, easy to clean (only clean once a month). Its excellent performance and productivity performance can save about 15% mixing time and 20% production energy consumption. Scientific gate discharge hopper perfectly realizes efficient discharge without splash and drip.

Intelligent control system



Multiple securities, no–downtime, cloud monitoring is more convenient

Self-developed dual-computer synchronous production management and control system, plus the patent of fault warning, multiple guarantees to make your equipment never stop; Reports are automatically classified and summarized, and cloud data storage ensures clear data and convenient operation.

Remote emergency service



Real-time monitoring, timely communication, dedicated service, trouble-free

NFLG Internet service cloud platform can track and monitor the equipment in real time, by means of the wireless network and remote connection, to help equipment operators and NFLG headquarters technical service engineers to communicate in a timely manner, to ensure that solve the problems for users in the shortest time.

Q: How is the quality of your products?

A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q: How about the price?

A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving timeand absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis

Q: Service and Payment Terms?

A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.

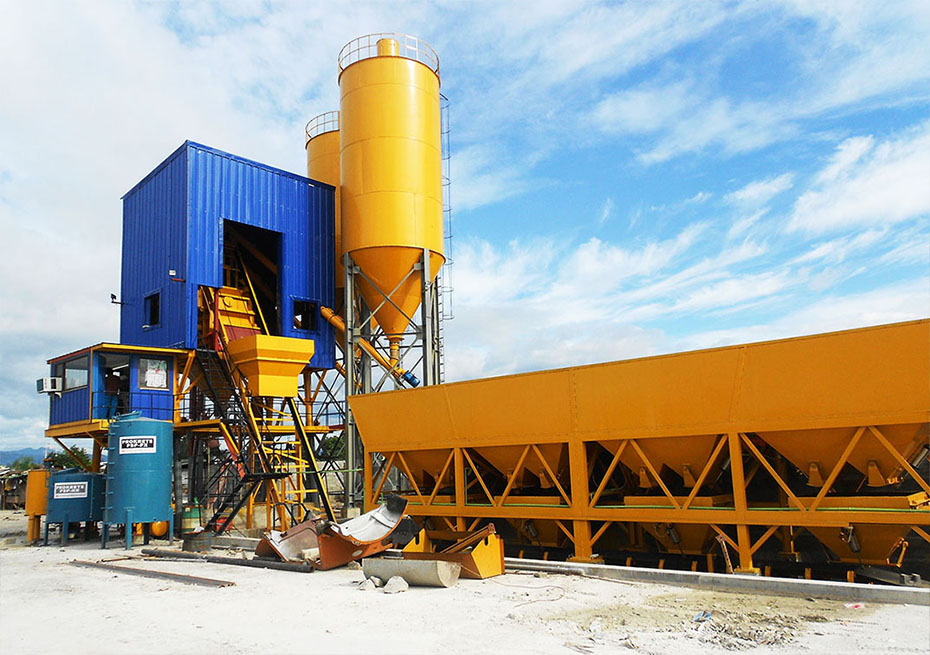

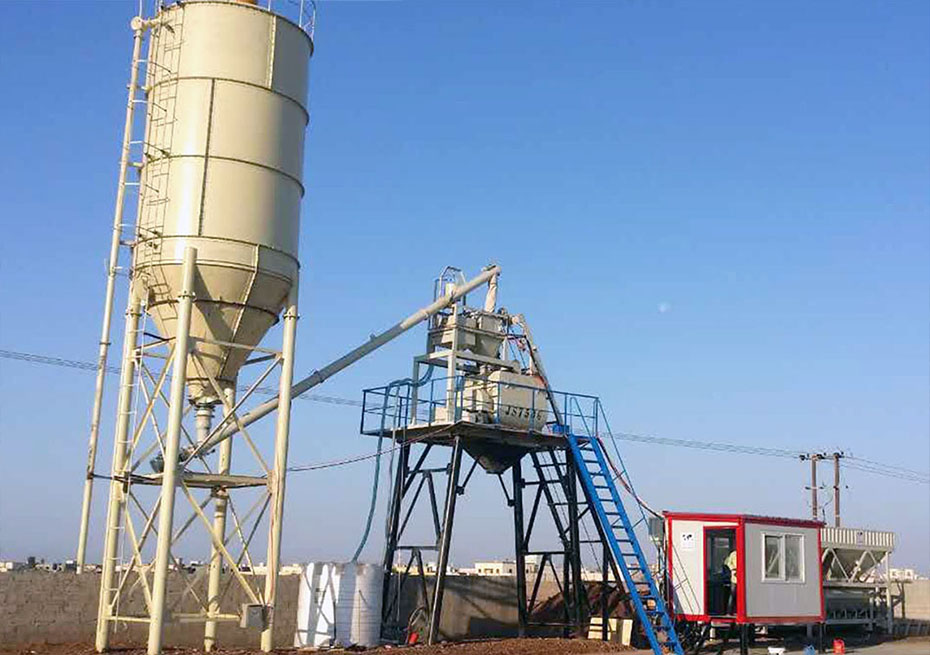

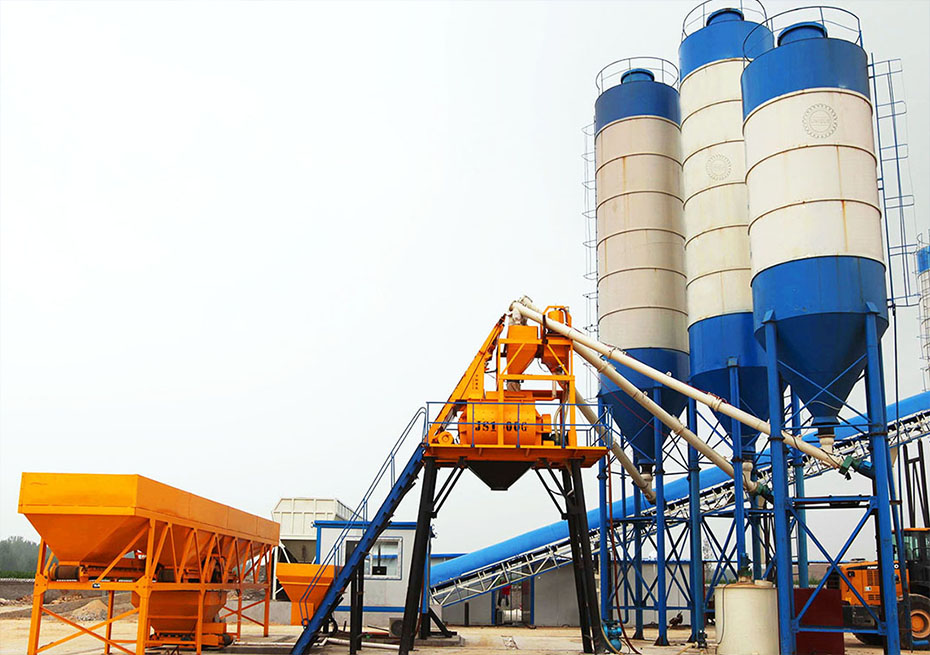

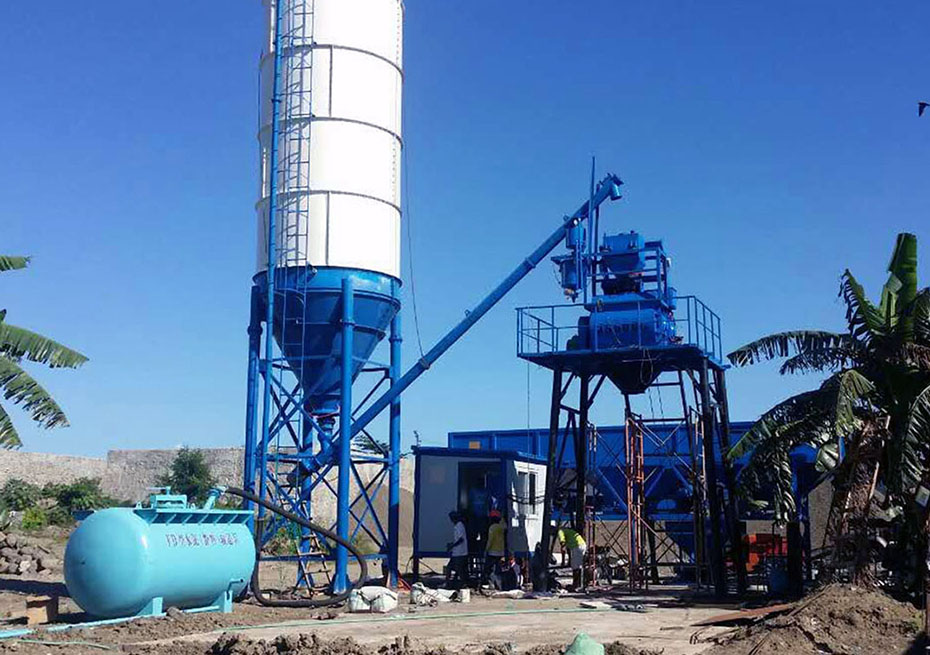

Our project

HZS series bucket concrete mixing plant

Bucket concrete batching plant adopts skip hopper(bucket) to transport aggregate from batching machine to twin shaft mixer.

The bucket concrete batching plant has the advantages of small using space, flexible installation and convenient movement, so it is very popular by users.

ModelHZS25HZS35HZS50HZS75
Capacity (m3/h)25355075
Mixing system (twin shaft concrete mixer)JS500JS750JS1000JS1500
Aggregate FeederBucket (Skip Hopper)
Discharging volume500L750L1000L1500L
Aggregate scale hopper800L1200L1600L2400L
Weighing systemWater, Cement, Additive
Air systemAir compressor, etc
Control systemComputer auto-control module (PLC can be optional item)
After-sales serviceErection & commissioning, operator training
