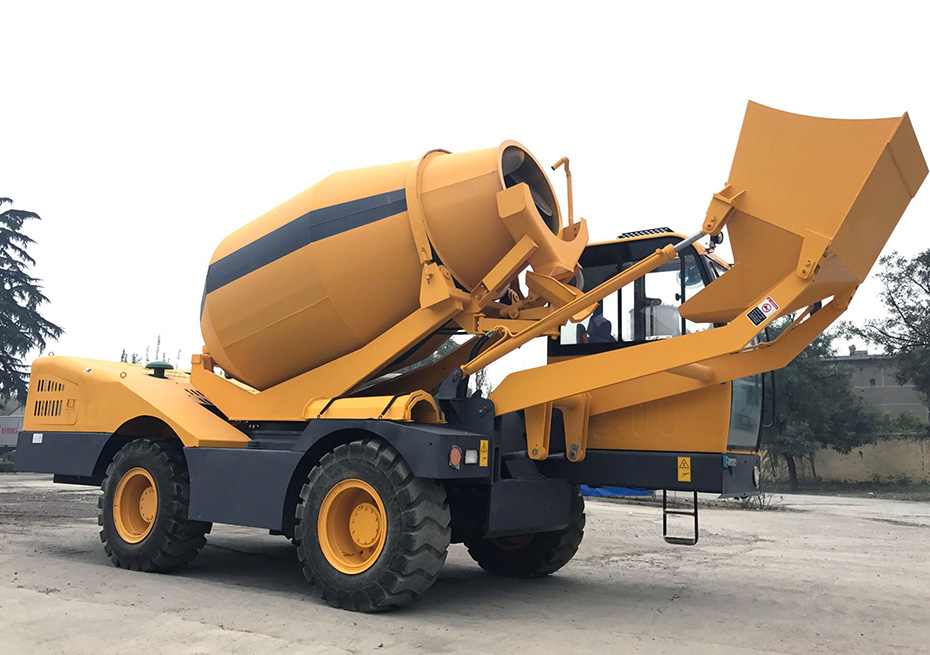

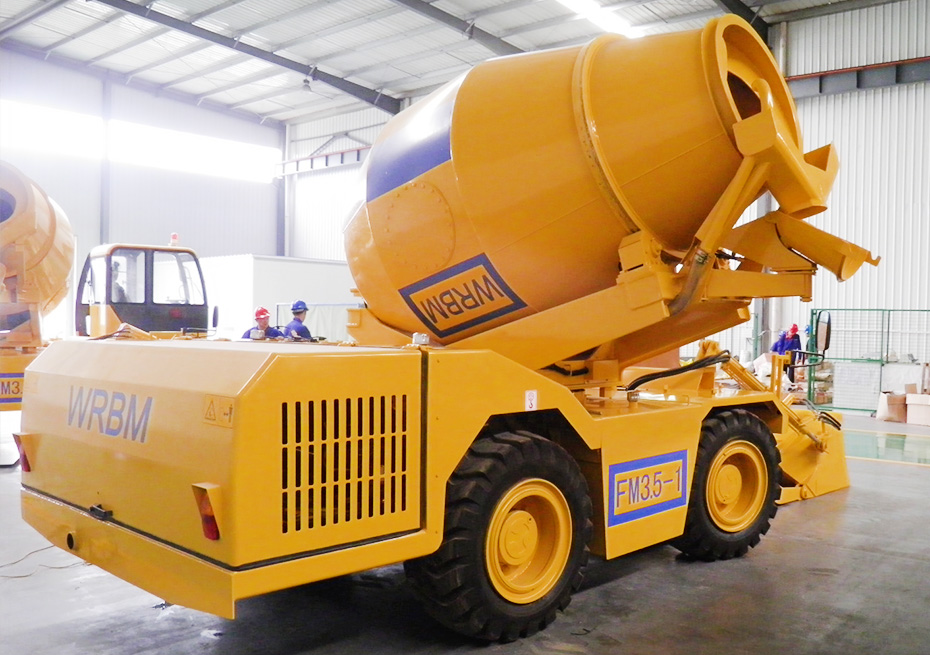

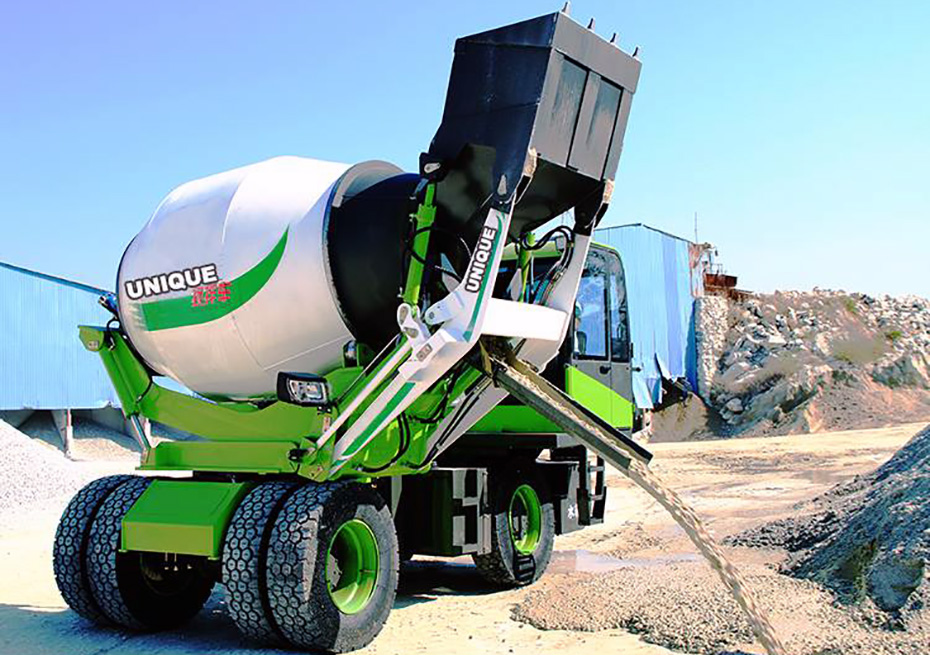

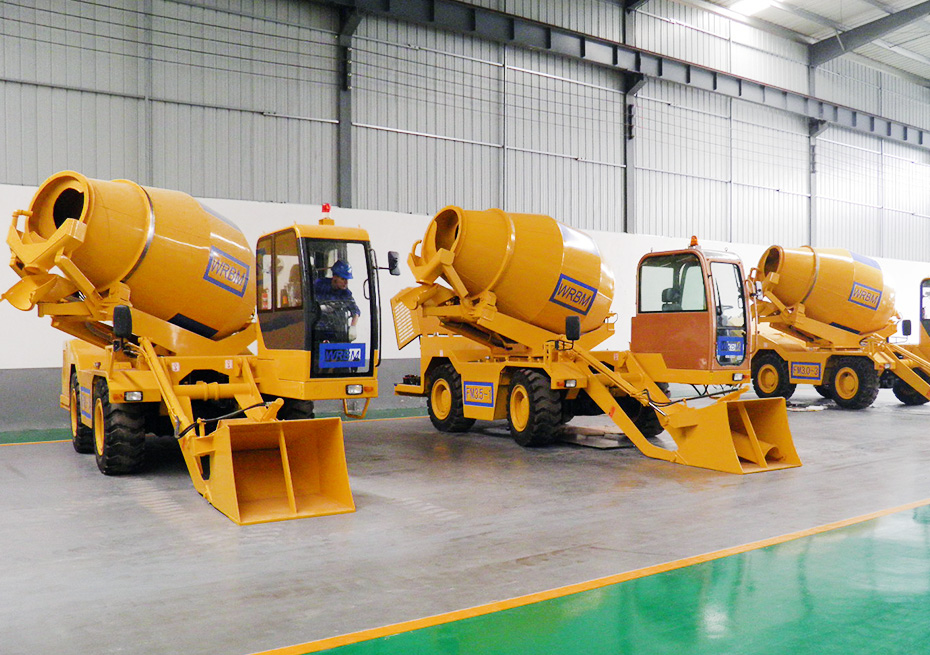

Self loading concrete mixer is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more。
It can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
Name | Item | Specification | ||
1.6m3 self loading concrete mixer | Net | 5500 KG | ||
Transmission | Full Hydraulic | |||
4 WD | ||||
Brake | Air Brake | |||
Chassis | Off-road | |||
Loader bucket | capacity | 0.4m3 | ||
Control | Hydraulic | |||
Tilt angle | 20% | |||
Speed | High | 0-25KM/H | ||
Low | 0-9KM/H | |||
Mini turning radius | 4.5M/R | |||
Engine | Type | Yunnei | ||
Rated Power/RPM | 60KW/2200RPM | |||
Max.Torque/RPM | 360N.M/1400RPM | |||
Cylinder | 4 | |||
Starter | Electric | |||
Cooling type | water cooling | |||
Maxing Drum | Output capacity | 1.6M3 | ||
Bank Angle | 16° | |||
Chute | Swing Angle | ≥50° | ||
Angle control | Hydraulic | |||
Loader control | Hydraulic 4 way stick | |||
Over size | 5400x2400x3500mm |
