Application Scope

UNIQUE Concrete Batching Plant's concrete mixing equipment manufacturers is mainly used in the following aspects.UNIQUE Concrete Batching Plant has been engaged in the production of batching plant for sale for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Product Details

UNIQUE Concrete Batching Plant strives excellent quality by attaching great importance to details in the production of Concrete Batching Plant.UNIQUE Concrete Batching Plant's Concrete Batching Plant is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.

Company Advantages
1. asphalt mixer produced by UNIQUE GROUP retain the existing structure yet integrated advantages of bitumen plant .
2. The quality of the product has withstood the test of time.
3. By improving production plan and adjusting crafts installation, UNIQUE has been always producing asphalt mixer with high performance.
4. With good economic effectiveness, this product will become more acceptable.

Company Features
1. As a large company, UNIQUE GROUP mainly focuses on the production of asphalt mixer.
2. All R&D project will be serviced by our experts and technicians who have abundant knowledge of the products in the industry. Thanks to their professionalism, our company is doing better in product innovations.
3. UNIQUE GROUP has been improving our ability to serve clients. Inquire online! UNIQUE GROUP is committed to developing Asphalt Mixing Plant with low cost but high quality. Inquire online!

Iveco Asphalt Mixing and heating Truck

QYZ5250TYH Asphalt tanker truck is used for heating , mixing and transporting asphalt. It keeps the tank temperature drop less than 10℃ in 8 hours. The waste asphalt could be recollected

Contact Diana Wang

tel: 0086 13509412300

Specification

Item		Unit	Value
Chassis	Model No.		QYZ5250TYH (Euro IV)
	Outline (LxWxH)	mm	9580x2500x3360
	Gross Weight	kg	25000
	Max. Speed	Km/h	90
	Drive Type		6x4
	Wheelbase	mm	5000+1400
	Engine	Kw	Cursor C9350E4
	Tyre		11.00-20; 12.00-20/11.00R20; 12.00R20
Parameter	Temperature drop rate in 8 hours	℃	≤20
	3t asphalt mixture heating rate	℃/h	≥60
	Max. heating temperature	℃	160±10
	Lifting Load capacity	t	≥0.3
	Discharging rate	t/min	≥3
	Max. Lifting Angle	o	41
	Ready Mixed asphalt cabin volume	cbm	14.4
	Raw asphalt cabin volume	cbm	2.9

Our Advantage

YLB Asphalt Mixing Plant

Asphalt mixing plant is a plant that is used for mixing the dry warm aggregate, padding and asphalt for homogeneous mixture at the required temperature. What should be mentioned here is that mixing the aggregate, padding and asphalt must be at a certain proportion. And it is widely used to the construction of highway, city road and parking lot.

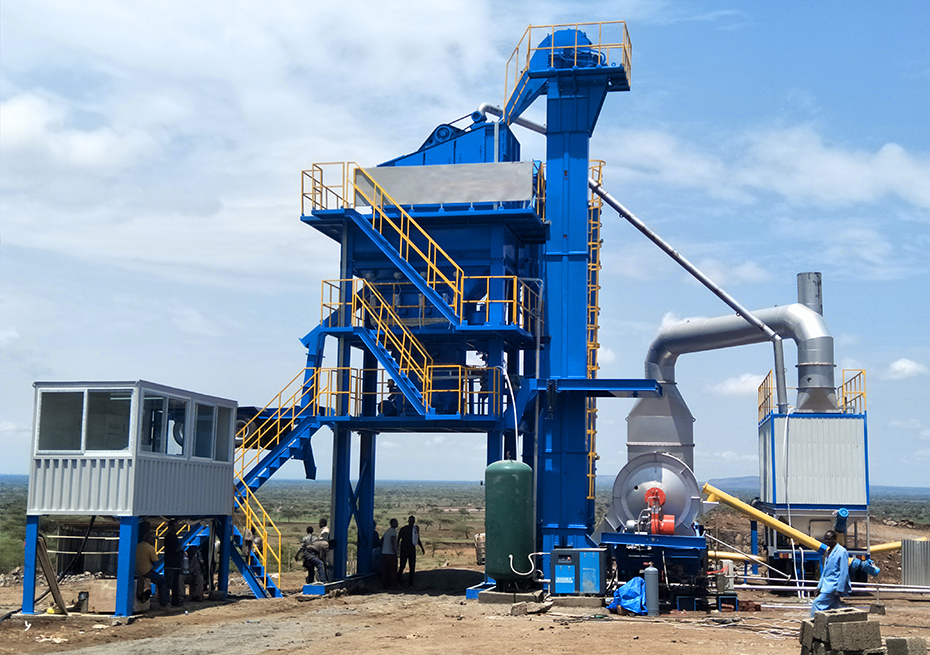

YLB asphalt plant

YLB Asphalt Mixing Plant

YLB asphalt plant

UNIQUEYLB Asphalt Mixing Plant

Model Number: LB700-LB2000

Capacity: 60 t/h ~ 160 t/h

Mixer Capacity: 700 kg/batch ~ 2000 kg/batch

Highlights:
Mobile plant,easy for installation, fast relocation;
Batch mix, precise screening, accurate weighing.

Get a free quote

Parameters

Model	YLB700	YLB1000	YLB1500	YLB2000
Capacity(t/h)	60	80	120	160
Mixer Capacity(kg/batch)	750	1000	1500	2000
Drum dryer(mm)	dia.1200*5200	dia.1600*6800	dia.1800*8000	dia.2200*8500
Dust collect effect	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3
Total Power(kw)	178	285	380	470
Fuel Consumption (Oil)	5.5-7kg/t	5.5-7kg/t	5.5-7kg/t	5.5-7kg/t
Fuel Consumption (Coal)	10kg/t	10kg/t	10kg/t	10kg/t

Asphalt mixing plant structure

1. Cold aggregate supply system: it is the part to store the difference size of the materials, according to the machine capacity to feeding material by the control system, usual have four bins.
2. Feeding belt conveyor : Feeding belt system use the belt to collect the materials from the cold bin, and then transfer the materials into the dryer drum.
3. Drying drum:it is the part to heating the material, and make the stone temperature reach 160℃
4. Hot aggregate elevator: it is the part use the bucket to collect the hot material from the dryer drum, and elevating it in the main .
5. Vibrating screen: with the different screen net to vibrate the different size material again, and store it in the hot aggregate silo.
6. Hot aggregate silo: it is the place to store the aggregate after heating, and waiting for weighting.
7 .Measuring system : use cell meter to weigh the stone, asphalt, filter, according to the formula to weighting it.
8. Mixing system: the part mix the asphalt, stone, filter together in the mixer, 45 second one batch
9 .Finished products storage silo: the silo to store the finish storage, have the under type and side type
10 .Control system: the control cabinet to control all part by the software, all use Siemens electrical element
11. Asphalt heating supply system: it is the part for heating the bitumen, have two types: conduction oil heating and the directly heating
12. I grade Gravity filter: use the gravity principle to clean the dust
13. II grade bag filter: use the air blow principle to clean the dust
14. Filler storage supply system: the tank to store the powder, and supply it to the main frame for weighting and mixing.
15. Burner:The heating way use for the dryer, always have two kinds, one is for coal burner, and another is for the fuel oil burner.

UNIQUE Group is a professional concrete mixing equipment manufacturers in China.
