his series of batching plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.
Unique concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.

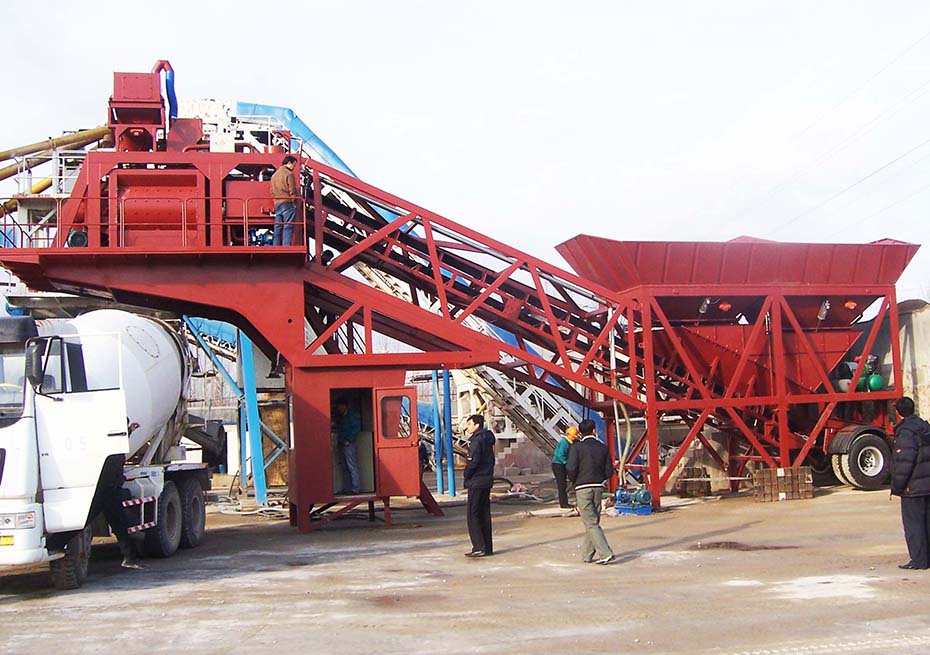

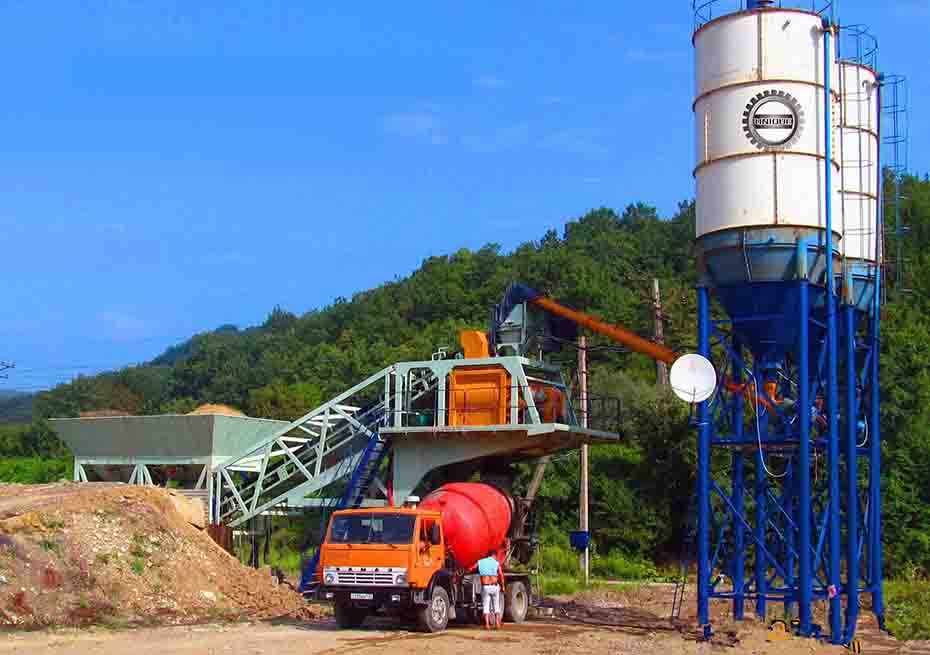

UNIQUE Mobile Concrete Batching Plant
Capacity: 25-100m3/h
Discharging Height:3800mm
Warranty:12 months after erection
Mixing system: Twin-shaft concrete mixer
After-sale service:Erection & commissioning, operator training
Aggregate batching machine: PLD2400/ PLD1600 PLD2400 PLD3200 PLD4800 PLD4800
Model | YHZS25-30 | YHZS35-40 | YHZS50-60 | YHZS75-85 | YHZS90-100 |
Capacity(m3/h) | 25-30 | 35-40 | 50-60 | 75-85 | 90-100 |
Aggregate feeder | Belt Conveyor | ||||
Mixing system (twin shaft concrete mixer) | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
Discharging volume | 500L | 750L | 1000L | 1500L | 2000L |
Aggregate Bins | 4*4m3 | 4*5m3 | 4*6m3 | 4*7m3 | 4*8m3 |
Weighing system | Water, Cement, Additive | ||||
Air system | Air compressor, etc | ||||
Control system | SIEMNS PLC+PC, Computer auto-control module (PLC can be optional item) | ||||
After-sales service | Erection & commissioning, operator training |
