Application Scope

Multiple in function and wide in application, Concrete Batching Plant can be used in many industries and fields.With rich manufacturing experience and strong production capability, UNIQUE Concrete Batching Plant is able to provide professional solutions according to customers' actual needs.

Company Advantages
1. asphalt plant 's structure is really eye-catching.
2. The rebound ability of the product shall be noticed. It's just like a platform allows the foot to land and bounce back effortlessly and quickly to reduce energy loss.
3. The product has a wide application value and commercial value.

Company Features
1. The UNIQUE factory is recognized as one of the largest factories manufacturing mobile asphalt plant for sale in China.
2. The technology of UNIQUE GROUP is more mature in this field.
3. Customers can enjoy the services without any worries at reasonable costs at UNIQUE GROUP. Inquire! UNIQUE Concrete Batching Plant's pioneering thinking paves the way for achieving your goals. Inquire!

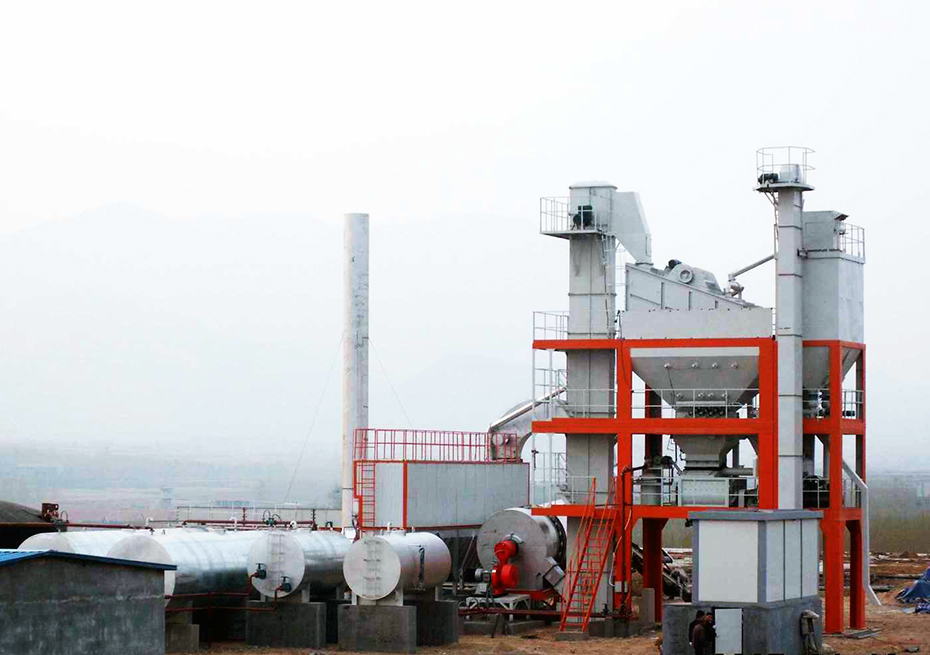

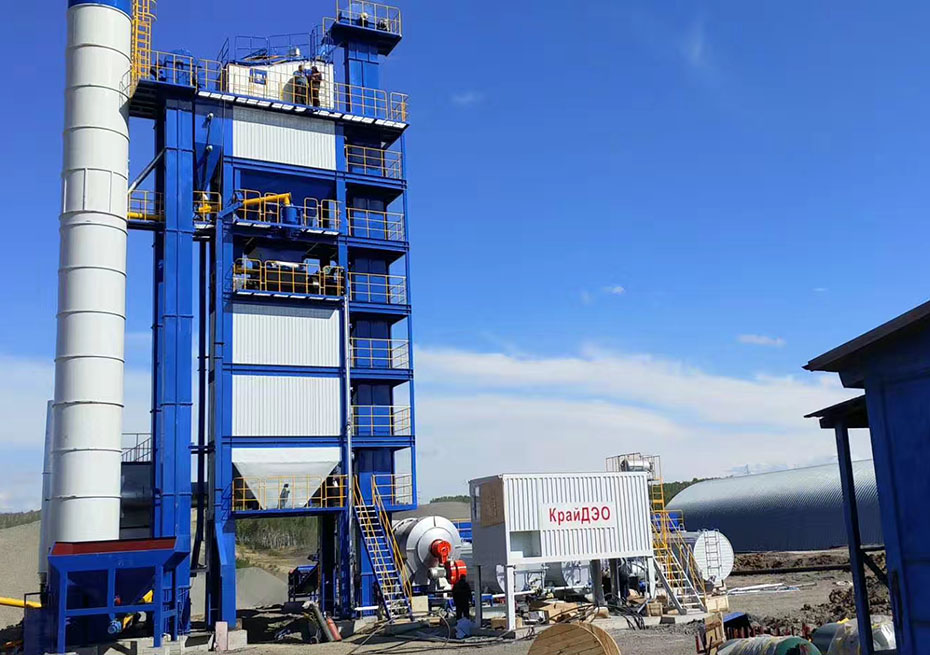

LB Asphalt Mixing Plant

Asphalt mixing plant is a plant that is used for mixing the dry warm aggregate, padding and asphalt for homogeneous mixture at the required temperature. What should be mentioned here is that mixing the aggregate, padding and asphalt must be at a certain proportion. And it is widely used to the construction of highway, city road and parking lot.

UNIQUELB Asphalt Mixing Plant

Model Number: LB700-LB4000

Capacity: 56-320t/h

Mixer Capacity: 1000-4000kg/batch

Working room noise: ≤70db(A)

Highlights:

Stationary plant, batch mixing, precise batching;
Classic model, most cost-effective, best-selling.

Get a free quote

Parameters

Model	LB700	LB1000	LB1200	LB1500	LB2000	LB2500	LB3000
Capacity(t/h)	60	80	100	120	160	200	240
Mixer Capacity(kg/batch)	750	1000	1200	1500	2000	2500	3000
Drum dryer(mm)	dia.1200*5200	dia.1600*6800	dia.1800*8000	dia.1800*8000	dia.2200*8500	dia.2500*9000	dia.2800*9000
Dust collect effect	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3	≤20 mg/Nm3
Total Power(kw)	178	285	316	380	470	547	700
Fuel Consumption (Oil)	5.5-7 kg/t	5.5-7 kg/t	5.5-7 kg/t	5.5-7 kg/t	5.5-7 kg/t	5.5-7 kg/t	5.5-7 kg/t
Fuel Consumption (Coal)	10kg/t	10kg/t	10kg/t	10kg/t	10kg/t	10kg/t	10kg/t
Weigh Exact	aggregate:±0.5%;powder:±0.5%;bitumen:±0.25%
Plant Covering Area (LWH)(m)	353017	353217	403017	403017	453217	483517	604517

Asphalt mixing plant structure

1. Cold aggregate supply system: it is the part to store the difference size of the materials, according to the machine capacity to feeding material by the control system, usual have four bins.
2. Feeding belt conveyor : Feeding belt system use the belt to collect the materials from the cold bin, and then transfer the materials into the dryer drum.
3. Drying drum:it is the part to heating the material, and make the stone temperature reach 160℃
4. Hot aggregate elevator: it is the part use the bucket to collect the hot material from the dryer drum, and elevating it in the main .
5. Vibrating screen: with the different screen net to vibrate the different size material again, and store it in the hot aggregate silo.
6. Hot aggregate silo: it is the place to store the aggregate after heating, and waiting for weighting.
7 .Measuring system : use cell meter to weigh the stone, asphalt, filter, according to the formula to weighting it.
8. Mixing system: the part mix the asphalt, stone, filter together in the mixer, 45 second one batch
9 .Finished products storage silo: the silo to store the finish storage, have the under type and side type
10 .Control system: the control cabinet to control all part by the software, all use Siemens electrical element
11. Asphalt heating supply system: it is the part for heating the bitumen, have two types: conduction oil heating and the directly heating
12. I grade Gravity filter: use the gravity principle to clean the dust
13. II grade bag filter: use the air blow principle to clean the dust
14. Filler storage supply system: the tank to store the powder, and supply it to the main frame for weighting and mixing.
15. Burner:The heating way use for the dryer, always have two kinds, one is for coal burner, and another is for the fuel oil burner.

UNIQUE Group is a professional concrete mixing equipment manufacturers in China.

UNIQUE intermittent asphalt plant plant for highway

LB Asphalt Mixing Plant
