Application Scope

Concrete Batching Plant has a wide range of applications.UNIQUE Concrete Batching Plant is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.

Company Advantages
1. The quality of UNIQUE concrete pump capacity is guaranteed. It has passed through a comprehensive range of quality control processes such as fabrics hazardous substances detection.
2. The product is rather reliable in quality and can be used for a long time.
3. UNIQUE GROUP respects the individuality of the its business partners.

Company Features
1. UNIQUE GROUP is a professional manufacturer widely appraised with concrete pump capacity .
2. Strict tests have been conducted for concrete pumping machine .
3. Following the service tenet of concrete trailer pump , UNIQUE now has gained more and more fame in this market. Inquire now! pump mixer is our sustained tenet forever. Inquire now! Our concept is to always keep concrete pump machine in mind. Inquire now!

Concrete Mixer Pump

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

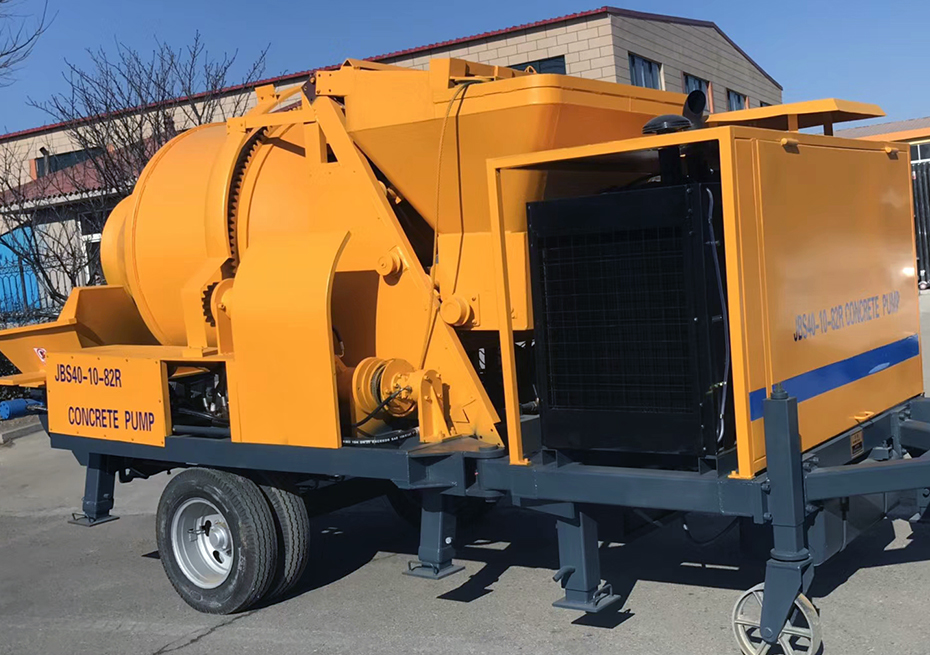

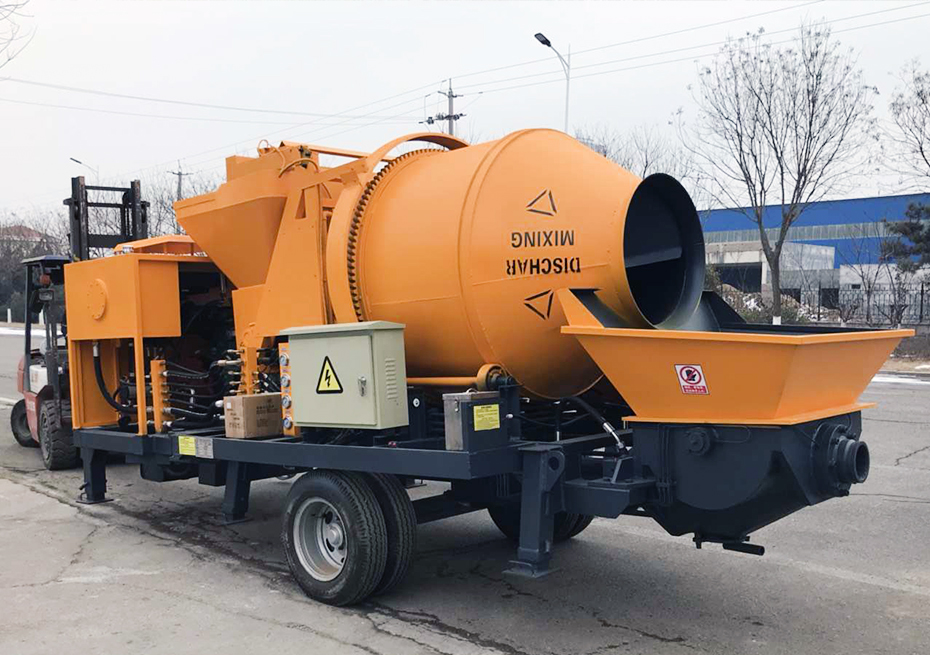

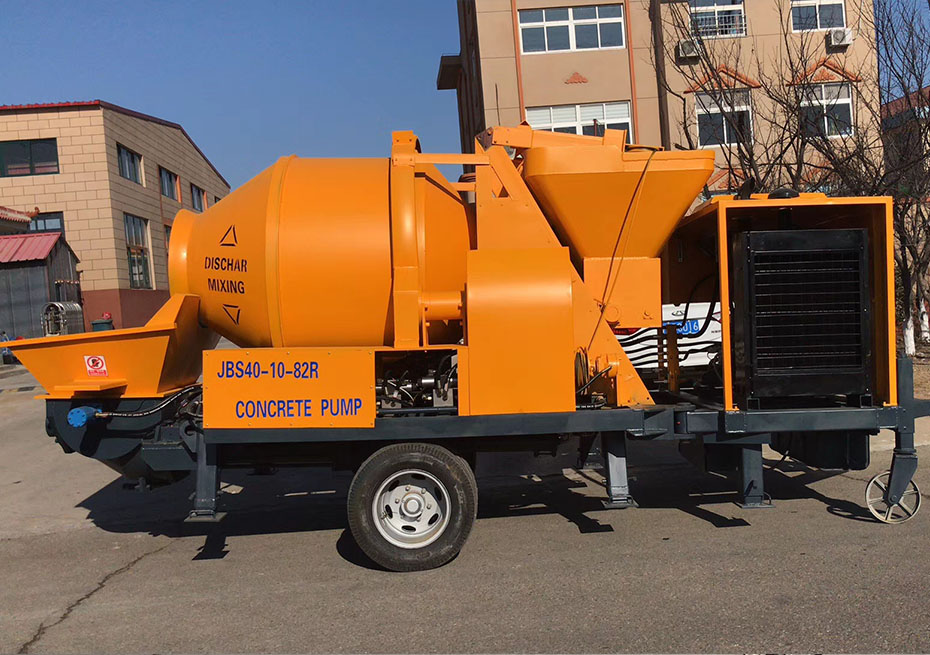

JBS Diesel Concrete Mixer Pump

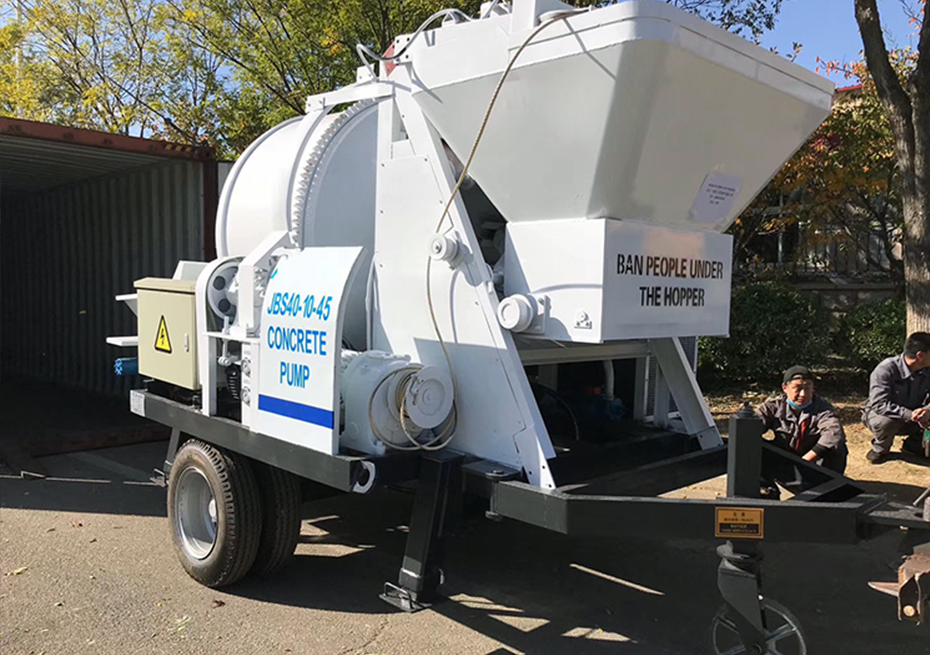

JBT Electric Concrete Mixer Pump

UNIQUEDiesel Concrete Mixer With Pump

Model: JBS30-JBS40

Power type: Diesel

Theoretical output: 30m3/h / 40m3/h

Max. concrete pumping pressure ： 10 MPa

Theoretical delivery distance ： 120/350m 160/500m

Total weight ： 5500kg 6000kg

Get a free quote

UNIQUE

JBT Electric Concrete Mixer With Pump

concrete conveying capacity: 30m3/h

Pump motor power: 30kw
Winding motor power: 4kw

Mixing motor power: 3*2kw
Weight: 3500kg
Dimensions(L x W x H): 4300*2060*3680mm

Get a free quote

Parameters

Max theoretical concrete conveying capacity	30m3/h
Distribution valve model	S tube valves
Hopper capacity * filling height	500L* 1200mm
Pump motor power	30kw
Winding motor power	4kw
Hydraulic circuit form	Open circuit
Rated speed	1480Rmp
Oil tank volume	170L
Weight	3500kg
Concrete pumping pressure	9Mpa
Concrete cylinder size * length	￠180mm*800mm
Discharge mouth diameter	￠180mm
Mixing motor power	3*2kw
Water pump motor power	550w
Max aggregate diameter	Pebble: 40mm
Max aggregate diameter	Gravel: 30mm
Voltage	380v
Dimension(LWH)	430020603680(mm)

Features of Concrete Mixer Pump

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump.

It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.

The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

Advantages Of Concrete Mixer With Pump

1.Main oil pump. Adopt domestic famous brand or Rexroth, Kawasaki series.
2.Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.
3.Power system. Adopt domestic and world famous motor and diesel engine.
4.Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
5.Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.

UNIQUE Group is a professional concrete mixing equipment manufacturers in China.
